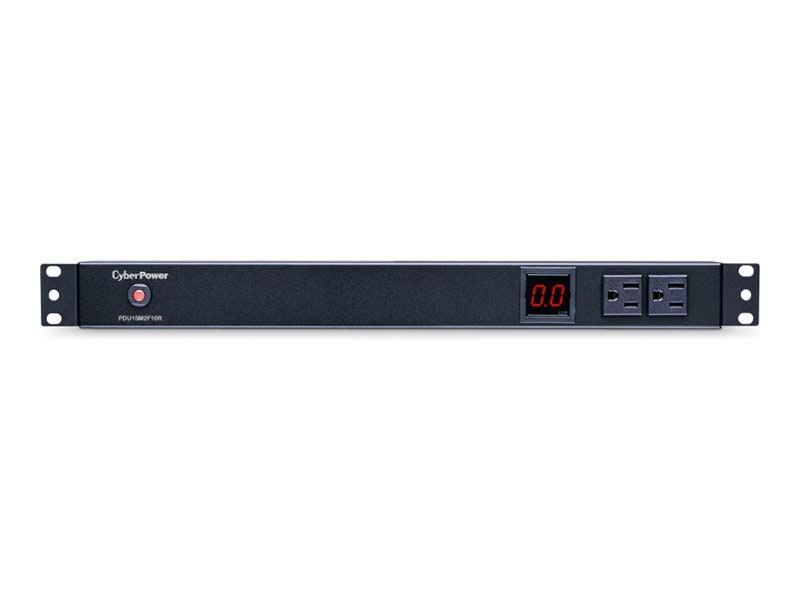

The CyberPower 12-outlet (2 Front and 10 Rear) rack mount metered power distribution unit (PDU15M2F10R) provides 120V, 15A output. It distributes power to (12) NEMA 5-15R receptacles from a single NEMA 5-15P input, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
-
4.00 lbs
-
Physical
Rack Size: 1U
Style: Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (2) sets (L-short/L-long)
External Site Ground Pin: Yes
Meter Readout: Amperage
Certifications
UL1363 certified by ETL (USA), CSA C22.2 (Canada)
RoHS Compliant -
# Ports: 12Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
PDU, adjustable mounting brackets (2 sets), documentation
-
Attributes: MeteredColor: BlackForm Factor: 1U RackmountForm Factor: Rack-mountableManufacturer Product Line: CyberPower Metered SeriesModel: PDU15M2F10RWeight Taxonomy: 3.97lbs
-
1.75"h x 17.5"w x 2.25"d
-
Plug Type: NEMA 5-15P
Plug Style: Straight
Cord Length: 15 feet
Outlets: Total (12), Front (2), Rear (10)
Outlet Type: NEMA 5-15R -
Voltage Provided: 120VVoltage Provided: AC 120V
-
Input
Voltage: 120VAC
Current: 15A max
Frequency: 50/60Hz
Output
Overload Protection: 15A
Nominal Output Voltage: 120VAC -
This product is subject to our return policy. Please see our complete return policy for details.
-
5.7 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 1363
-
39121017
-
Warranty Period: Limited lifetime
