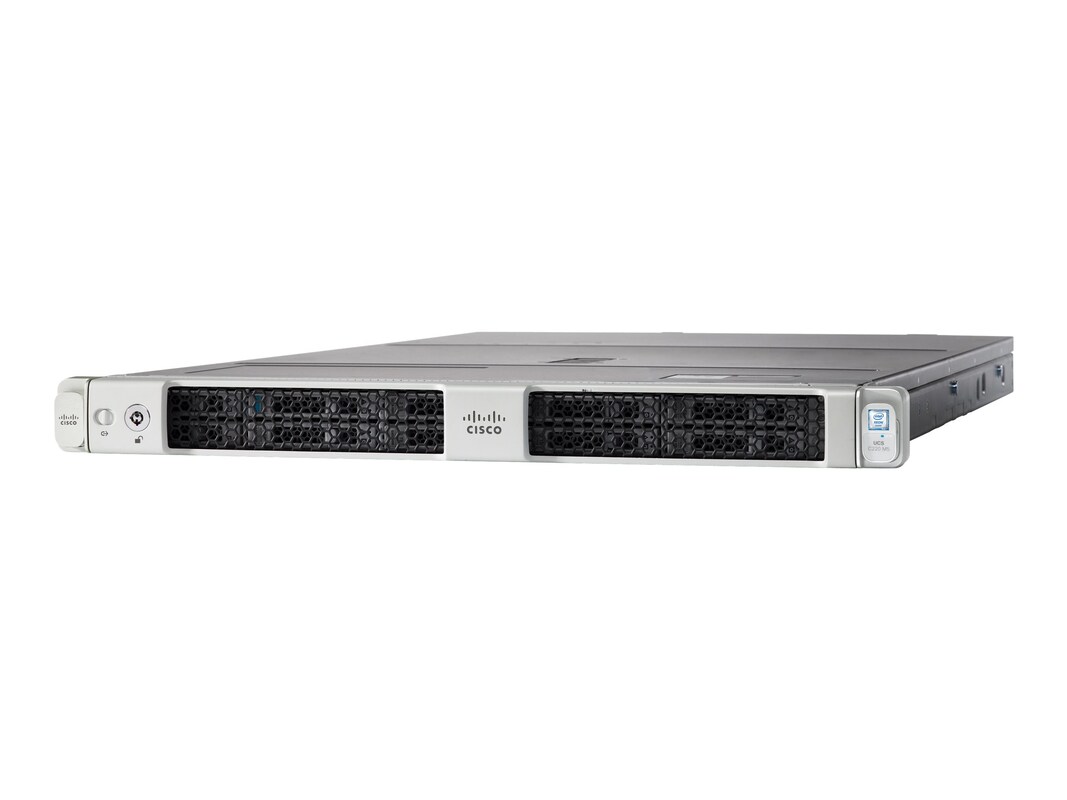

Cisco UCS servers provide a cohesive system that unites computing, networking, storage access, and virtualization.
-
# External 2.5" Bays: 10
-
Server, bezel, (2) CPU heatsinks, 32GB microSD card, ball bearing rail kit, (10) drive blanking panels, mini storage carrier, (2) power supplies, documentation
-
Chassis Form Factor: 1U RackmountChassis Form Factor: Rack-mountableColor: SilverForm Factor: DIMM 288-pinPrinter Type: NoneSystem Type: ServerWarranty Period: 3 years
-
Cache Memory (installed): 13MBFlash Memory Form Factor: SD Memory CardMemory Attributes: Single RankMemory Rating: PC4-21300RAM (installed): 192GBRAM (max): 3072GBRAM Technology: DDR4 SDRAM
-
192GB (12x16GB) 2666MHz ECC DDR4 SDRAM.
There are twenty-four 288-pin DIMM slots. Twelve slots are occupied by removable 16GB modules; the other slots are open.
Video memory: ASPEED Pilot 4 graphics with 16MB dedicated video RAM. Connects via VGA interface. -
There is no operating system pre-installed.
-
OS Provided: No Operating System Installed
-
CD/DVD Type: No Optical DriveCD/DVD Type: None
-
1.7"h x 16.9"w x 29.8"d
-
Expansion slots:
(1) PCIe 3.0 x24, HL/HH (x16 mode/NCSI support)
(1) PCIe 3.0 x24, 3/4-length/FH (x16 mode)
(1) mLOM
Expansion bays:
(10) 2.5" hot-swap bays
I/O:
(2) USB 3.0 (back)
(1) VGA, DB-15 (back)
(1) RJ-45 serial (back)
(2) RJ-45 LAN (10GbE; back)
(1) RJ-45 management (NIC; back)
(1) KVM (front)
(2) Power in
Networking controller:
Cisco UCS Virtual Interface Card 1387, Intel X550
2xQSFP ports
Storage controller:
Integrated SAS 12Gbps controller, supports RAID levels JBOD. -
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 1540WPower Provided: 770
-
(2) 770W hot-plug power supplies; maximum.
-
# Processors Installed: 2# Processors Supported: 2Data Bus Speed: 2400MHzNumber of Cores: 10-coreProcessor Features: Intel Turbo Boost TechnologyProcessor Manufacturer: IntelProcessor Model Number: 4114Processor Speed: 2.2GHzProcessor Speed (Boosted): 3GHzProcessor Type: Xeon SilverProcessor Upgradability: Upgradable
-
Networking Protocol: 40 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: Wake on LAN (WoL)Remote Management Protocol: CLIRemote Management Protocol: IPMI 2.0Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3
-
Due to manufacturer restrictions, all sales on this item are final.
-
0.01 lbs
-
Compliant Standards: ACPI 4.0Compliant Standards: AS/NZS 60950-1Compliant Standards: AS/NZS CISPR 32 Class ACompliant Standards: CAN/CSA C22.2 No. 60950-1 Second EditionCompliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CNS 13438 Class ACompliant Standards: Directive 2014/30/EUCompliant Standards: Directive 2014/35/EUCompliant Standards: EN 300386Compliant Standards: EN 55032 Class ACompliant Standards: EN 60950-1 Second EditionCompliant Standards: EN55024Compliant Standards: EN61000-3-2Compliant Standards: EN61000-3-3Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: GB 4943-2001Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1 Second EditionCompliant Standards: KN32 Class ACompliant Standards: KN35Compliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
Hard Drive Capacity: 240GBHard Drive Interface: SATAHard Drive Interface: Serial ATAHard Drive Type: Hot-swapHard Drive Type: NoneHard Drive Type: Solid State DriveStorage Controller RAID Level: JBODStorage Controller Type: SAS 12.0 GbpsStorage Controller Type: Serial Attached SCSI
-
43211501
-
Display Technology: None.Video Card: ASPEED Pilot 4
