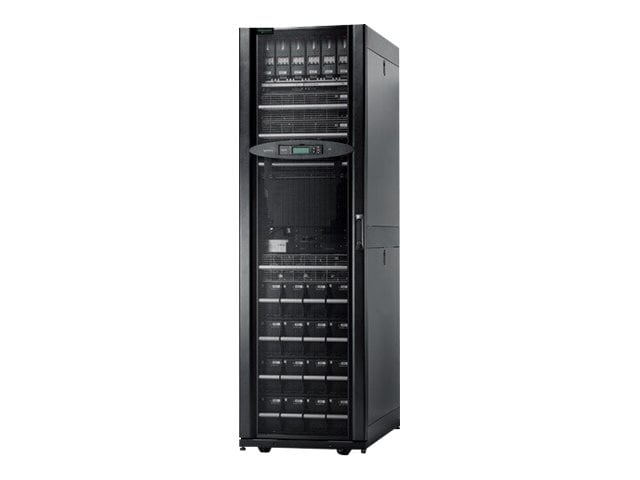

APC Symmetra PX 48kW AIO, Scalable to 48kW, 400V (SY48K48H-PD)

1754.90 lbs

Features

Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery modules connected in parallel - Delivers higher availability through redundant batteries.
Battery replacement without tools - Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
Dual mains input - Increases availability by allowing the UPS to be connected to two separate power sources.
Intelligent battery management - Maximizes battery performance, life and reliability through intelligent, precision charging.
Manageable external batteries - Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Swappable batteries - Allows quick addition of runtime capacity or replacement of existing battery modules. Installed modules are automatically recognized by the system.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.

UPS, network management card, start-up service, documentation

78.4"h x 23.6"w x 42.1"d

Input Connections: Hard Wire 5-wire (3PH + N + G)

Output

Output power capacity: 48.0kW/48.0kVA
Max Configurable Power: 48.0kW/48.0kVA
Nominal Output Voltage: 230V, 400V 3ph
Output Voltage Note: Configurable for 380, 400 or 415V 3-Phase nominal output voltage
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3Hz user adjustable +/- 0.1
Output Frequency (not synced): 60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages: 380, 400, 415V
Load Crest Factor: Unlimited
Topology: Double Conversion Online
Waveform type: Sine wave
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Output Voltage THD: < 2% for 0 to 100% linear load and < 6% for full non-linear load
Output Voltage Tolerance: +/-1% static and +/- 5% at 100% load step
Bypass: Built-in Static Bypass

Input

Nominal Input Voltage: 400V 3ph
Input frequency: 40-70Hz
Input voltage range for main operations: 340-477V
Input Total Harmonic Distortion: Less than 5% for full load
Type of Input Protection Required: gL fuse
Other Input Voltages: 380, 400, 415V
Maximum Short Circuit Withstand (Icw): 30.0kA
Maximum Input Current: 98.0A
Input Power Factor at Full Load: 0.99

Batteries & Runtime

Battery type: VRLA
Included Battery Modules: (4)
Typical recharge time: (3) hours
Nominal Battery Voltage: +/-192V (split battery referenced to neutral)
End of Discharge Maximum Battery Current: 165.0A
RBC Quantity: (4)
DC Overcurrent Protection: 1008A
Extendable Run Time: (1)
Battery Volt-Amp-Hour Capacity: 13824
Extended Run Options: Symmetra-PX-All-In-One-48kW-Scalable-to-48kW-400V
End of Discharge Battery Voltage: +/-154V
Efficiency in Battery Operation: 94.0 %
Maximum Available Short Circuit Current: 4kA
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Runtime, Full Load: 4.6 minutes (48kW)
Runtime, Half Load: 14.2 minutes (24kW)

This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.

1887.6 lbs
