- Provides 10kW power
- Surge Suppression is Standard
- Connector(s): Power Hard Wire 3-wire (2PH + G), Power NEMA L6-30 (F)
- 6 Outlets
- 3.70 minute(s) Battery Runtime at Full Load
- Attributes include Double conversion online

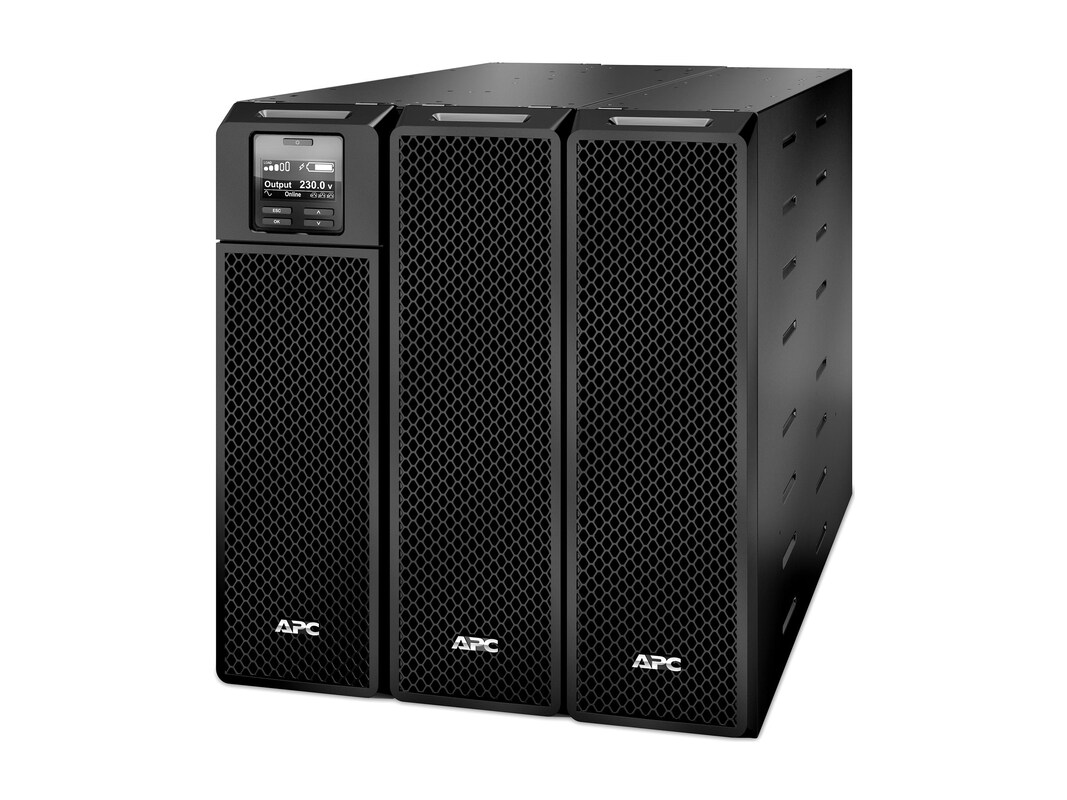

Smart-UPS Online provides high density, true double-conversion online power protection for servers, voice/data networks, medical labs and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS Online can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass and input power factor correction.
LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
10/100 BaseT Connection - Connect the device to a network using a 10 or 100BaseT connection.
Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Communications & Management
Interface Port(s) Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes
Regulatory Approvals: CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: Contains Lithium Coin Cell
# Ports: 6Communication Interface: Ethernet, Serial (RS-232), USBConnector: Power Hard Wire 3-wire (2PH + G), Power NEMA L6-30 (F)
UPS, temperature probe, USB cable, software, Web/SNMP management card, documentation
Attributes: Double conversion onlineColor: BlackForm Factor: TowerWarranty Period: 3 years
17"h x 10.35"w x 28.2"d
(1) Hard Wire 3-wire (2PH+G)
(6) NEMA L6-30R
Hard Wire 3-wire (2PH+G)
Battery Run Time (max): 3.7 minute(s)Power Capacity (VA): 10000 VAPower Provided: 10 kWSurge Suppression: StandardVoltage Provided: 208V
Output Power Capacity: 10000 Watts/10000VA
Max Configurable Power: 10000 Watts/10000VA
Nominal Output Voltage: 208V
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3Hz
Other Output Voltages: 240V
Crest Factor: 3:1
Topology: Double Conversion Online
Waveform Type: Sine wave
Bypass: Internal Bypass (Automatic and Manual)
Nominal Input Voltage: 208V
Input Frequency: 40-70Hz (auto sensing)
Input voltage range for main operations: 160-275V
Input voltage adjustable range for mains operation: 100-275V
Other Input Voltages: 240V
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Typical recharge time: 1.5 hours
Replacement Battery: APCRBC140
RBC Quantity: (2)
Runtime, Full Load: 3.7 minutes (10000W)
Runtime, Half Load: 11.4 minutes (5000W)
Surge Protection and Filtering
Surge energy rating: 480 Joules
This product is subject to our return policy. Please see our complete return policy for details.
Compliant Standards: Energy Star, FCC Part 15 A, REACH, RoHS
3 years repair or replace (excluding battery) and 2 years for battery.
