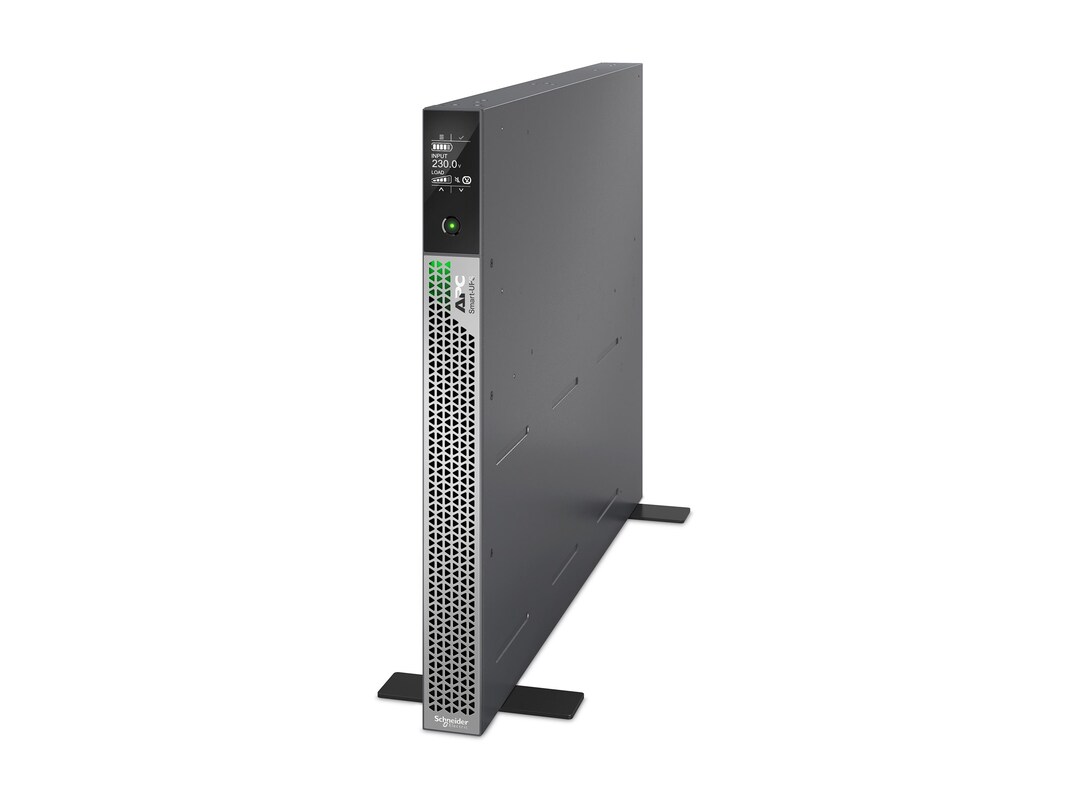

With Smart-UPS Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. 230V and 208V user selectable output. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
-
35.10 lbs
-
# Ports: 5Communication Interface: EthernetCommunication Interface: USBConnector: Power BS 1363AConnector: Power IEC 60320 C13Connector: Power IEC 60320 C19
-
UPS, RJ45 Cable, Rack Mounting brackets, Network cable, Stabilization feet, Rail extension, Washer, USB cable, Screws, documentation
-
Color: Silver grayForm Factor: 1U RackmountForm Factor: Rack-mountable / externalForm Factor: TowerWarranty Period: 5 yearsWeight Taxonomy: 35.05lbs
-
1.7"h x 17"w x 22.1"d
-
(3) IEC 320 C13 out
(2) IEC 320 C19 out
(1) BS1363A British input
(1) EPO terminal
(1) Universal I/O port
(1) USB Type A
(1) Data Port
-
Battery Run Time (max): 6minPower Capacity (VA): 2200VAPower Provided: 2200Power Provided: 2200WSurge Protection Rating: 1600JoulesSurge Suppression: YesVoltage Provided: 208VVoltage Provided: 230VVoltage Provided: AC 208/220/230/240V
-
Main Input Voltage: 208-240VAC
Main Output Voltage: 208-240VAC
Kw Rating: 2200 W
Rated power in VA: 2200 VA
-
This product is subject to our return policy. Please see our complete return policy for details.
-
53.2 lbs
-
Compliant Standards: CECompliant Standards: EACCompliant Standards: EN 61000-4-4 Level 4Compliant Standards: EN 61000-4-5 Level 3Compliant Standards: FCC CFR 47 Part 15 Class ACompliant Standards: IEC 61000-4-5 Level 3Compliant Standards: IEC 61000-4-6 Level 3Compliant Standards: IEC 62040-2Compliant Standards: IEC/EN 61000-4-8Compliant Standards: IEC/EN 62040-1Compliant Standards: IP20Compliant Standards: RCMCompliant Standards: UK PSTICompliant Standards: UKCACompliant Standards: VDE
-
39121011
