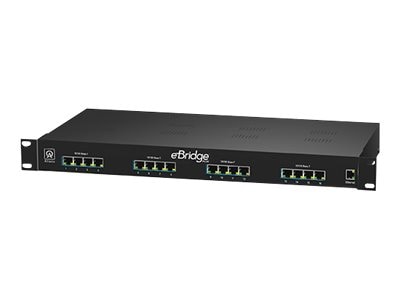

Altronix 16-Port Managed IP and PoE Receiver

eBridge16PCRX is a CAT5 to Coax cable Managed Ethernet Midspan receiver. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. eBridge16PCRX receiver sends power over the coax to the eBridge1PCT 15.4 W (PoE), eBridge1PCTX 30 W (PoE+) or eBridge1ST 30 W (PoE+) transmitter under PoE protocol. eBridge1PCT/1PCTX/1ST, in turn, delivers that power to a PoE enabled cameras or devices. eBridge16PCRX will not deliver power to non-compliant devices. These Plug-and-Play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 500 m in comparison to 100 m Ethernet maximum distance. A maximum range from head end to the PoE camera/device is 700 m, taking into consideration that up to 100 m of structured cable may be deployed at each end. Altronix offers model VertiLine563 Rack Mount Power Supply/Charger which provides 56 VDC output which will power one eBridge16PCRX receiver with a maximum of sixteen PoE cameras/devices or twelve PoE+ cameras/devices.
