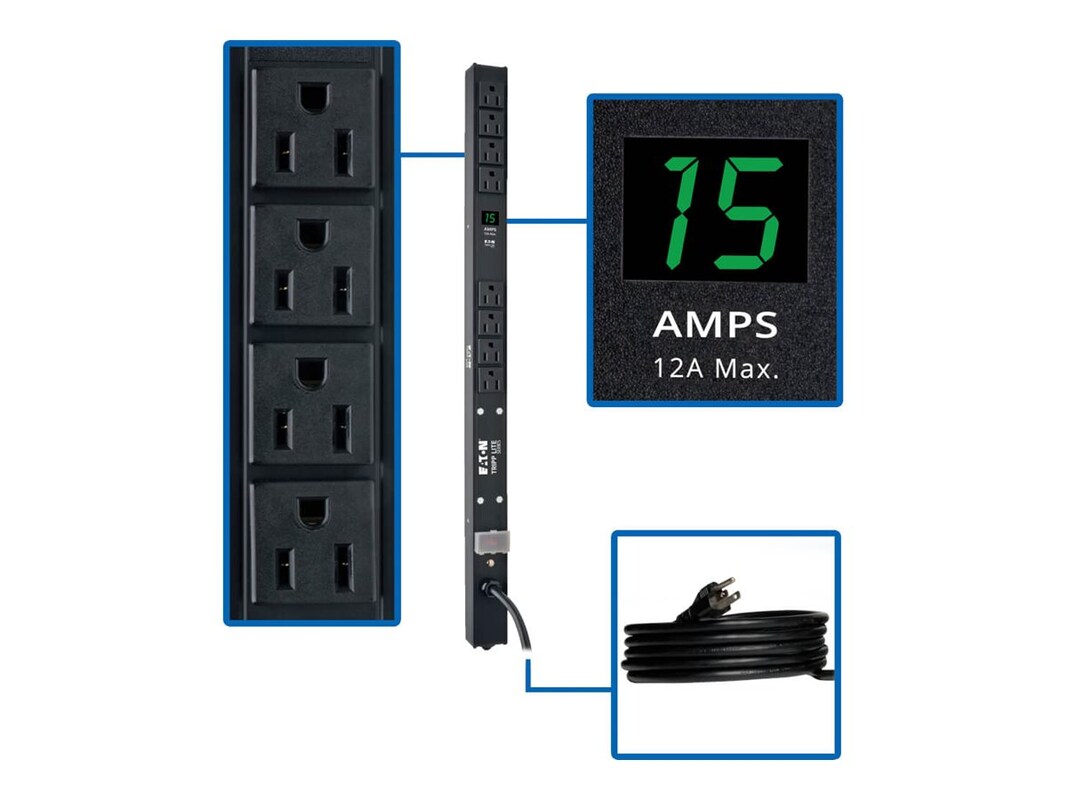

Tripp Lite single phase Metered PDU/Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. This enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. It offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
-
2.65 lbs
-
Key Features
15A single phase 120V Metered Power Distribution Unit (PDU) (Agency de-rated to 12A continuous)
Two-digit lighted meter reports combined total output current in amps
Attached NEMA 5-15P 15A 120V input plug with 15ft/4.5m line cord
0U 24"/61cm vertical rackmount format installs using no rack spaces
(8) NEMA 5-15R outlets
Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
Toolless installation supported in button-mount compatible equipment racks
Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks
Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
LEDS ALARMS & SWITCHES
Switches: Lighted on/off switch with integrated safety cover
Front Panel LEDs: Digital LED current monitor display
Certifications
Tested to UL60950-1 (USA) and CSA60950-1 (Canada), NOM (Mexico), Class A (Emissions), RoHS Compliant -
# Ports: 8Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)Connector: Power NEMA 5-15P
-
PDU, mounting hardware, spare mounting buttons, documentation
-
Attributes: MeteredColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 years
-
24"h x 1.75"w x 1.25"d
-
Outlet Type: NEMA 5-15R
PDU Plug Type: NEMA 5-15P
Input Cord Length: 15ft/4.6m -
Power Provided: 1.44kWVoltage Provided: 120VVoltage Provided: AC 120V
-
OUTPUT
Output Capacity Details: 1.44kW (120V), 1.52kW (127V), 1.2kW (100V); 15A maximum (Agency de-rated to 12A continuous)
Frequency Compatibility: 50/60Hz
Output Nominal Voltage: 100-127V nominal, single phase
Overload Protection: 15A
INPUT
PDU Input Voltage: 100V, 120V, 127V
Maximum Input Current: 15A
Maximum Input Current Details: Agency de-rated to 12A continuous
Input Phase: Single-Phase -
This product is subject to our return policy. Please see our complete return policy for details.
-
3.2 lbs
-
Compliant Standards: CSA 22.2 No. 60950Compliant Standards: CSA 22.2 No. 60950-1Compliant Standards: FCC Class A certifiedCompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: UL 60950-1Compliant Standards: UL60950-1
-
